Projects – Emulsion explosives

We have been selected as a leading supplier of control systems to promonent manufacturers of emulsion explosives.

For production plants we provide services associated with the introduction of new production lines and the modernisation of current ones. We upgrade and perform maintenance of MEMU, RTE-RP etc. production vehicle control systems.

In accordance with the Investor’s requirements, we use control systems based on Siemens and Beckhoff PLCs.

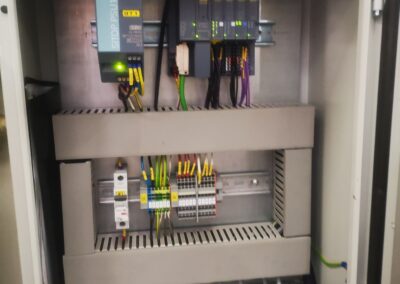

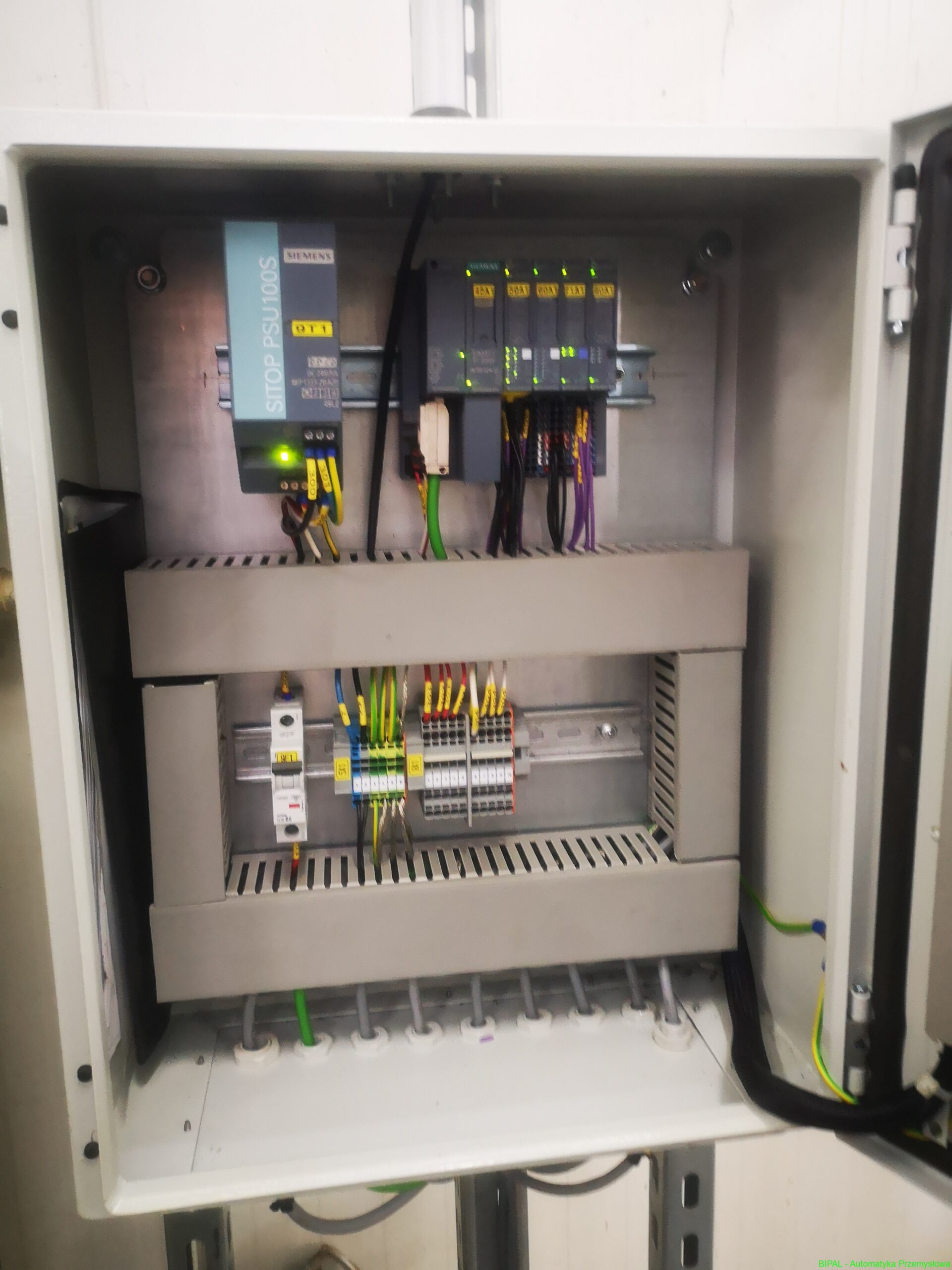

Our production line control systems are based on Simatic S7-300 PLCs. We use the following devices:

• 6ES7 317-2EK14-0AB0 CPU 317-2 PN/DP
• 6ES7 321-1BP00-0AA0 DI64xDC24V
• 6ES7 322-1BL00-0AA0 DO32xDC24V/0.5A
• WAGO 2-port Fieldbus Coupler PROFINET IO advanced for Series 750 and 753

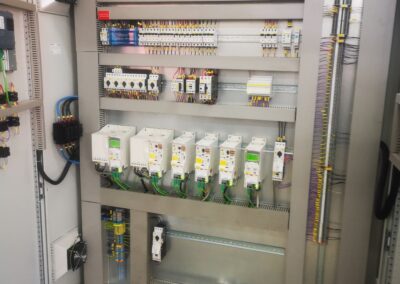

• ABB ACS355 inverter with Profibus communication card FPBA-01

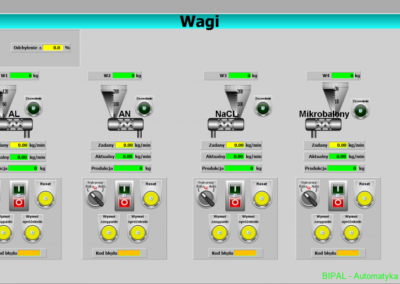

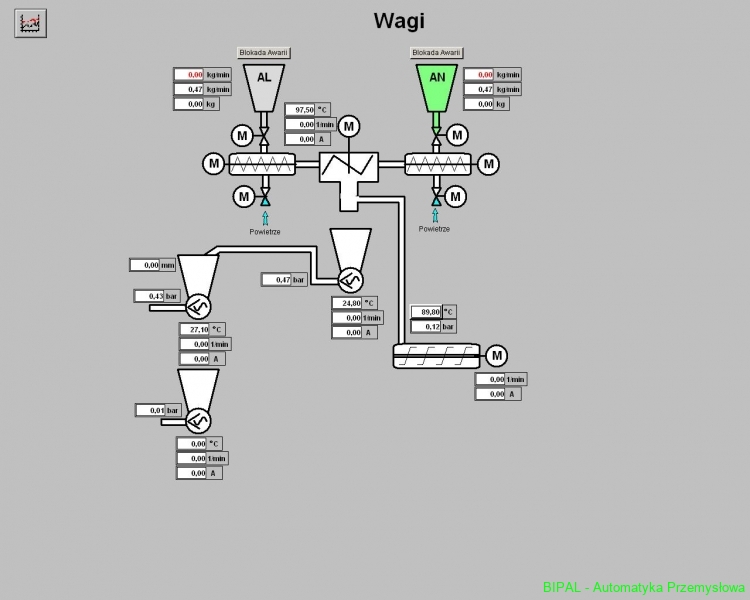

• Weighing modules equipped with Anybus-S PROFINET IO module

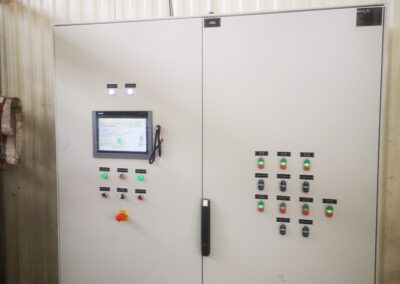

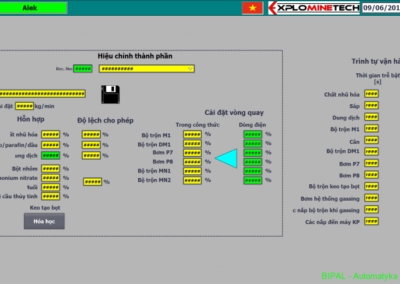

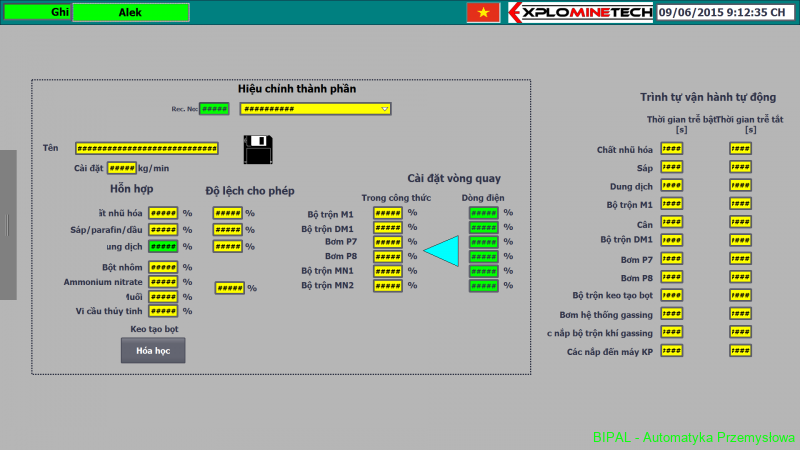

• HMI Operator panels from ASTRAADA

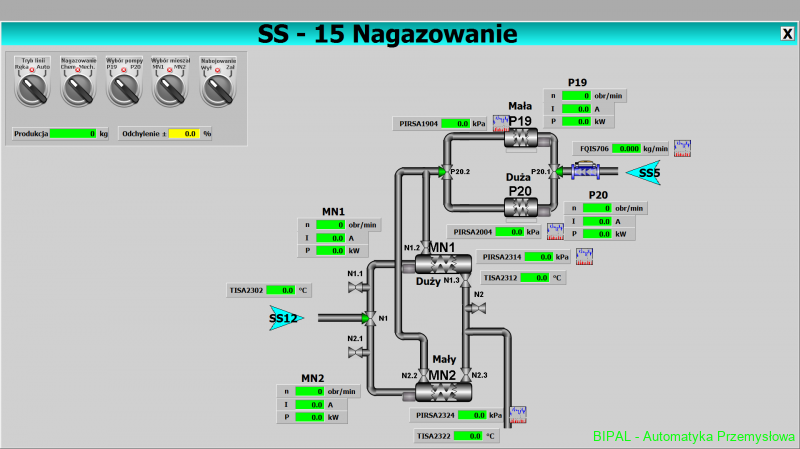

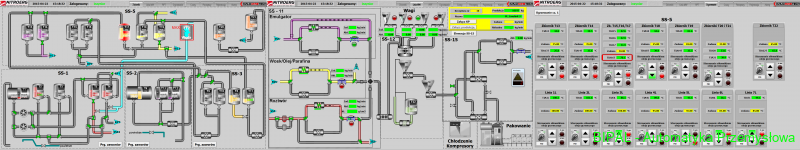

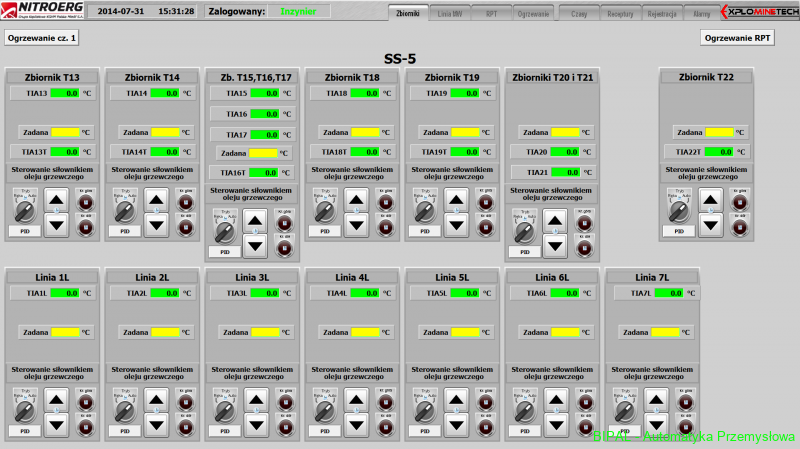

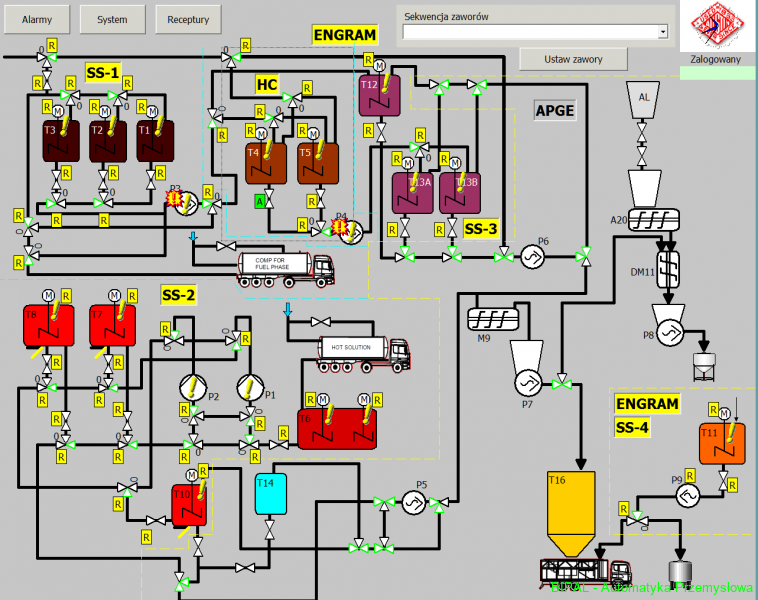

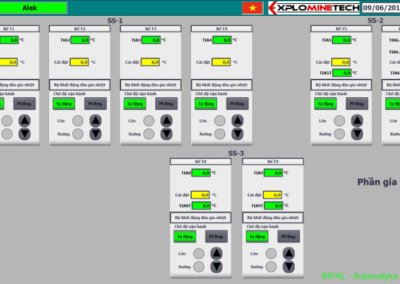

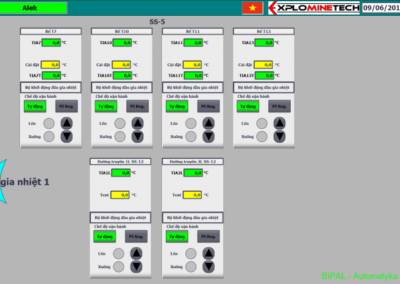

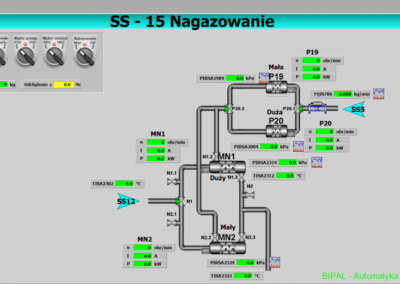

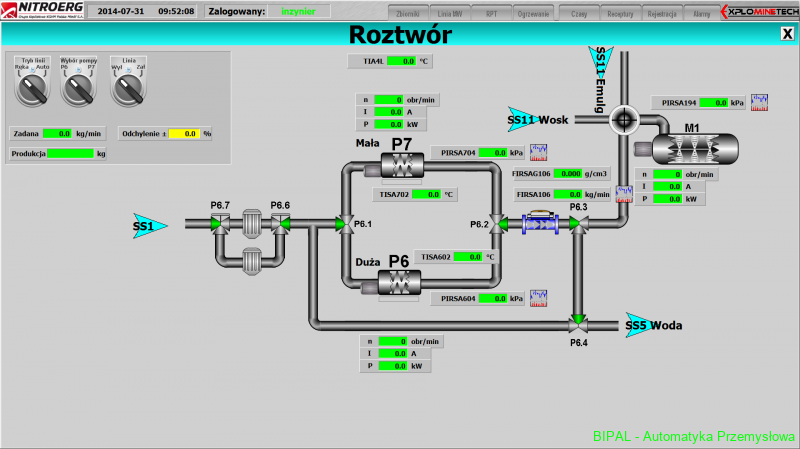

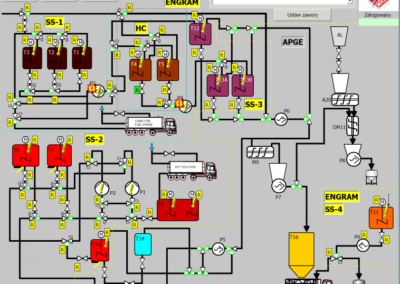

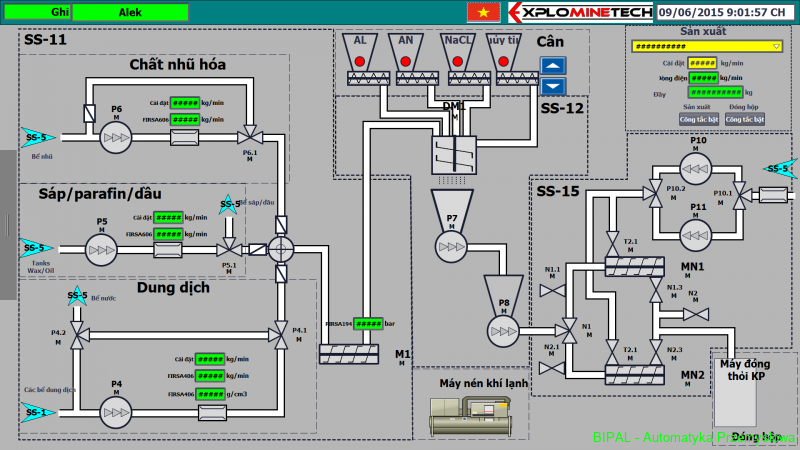

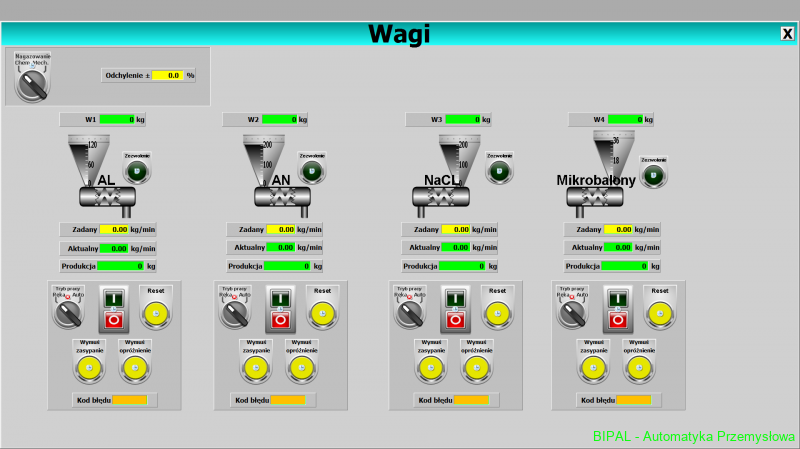

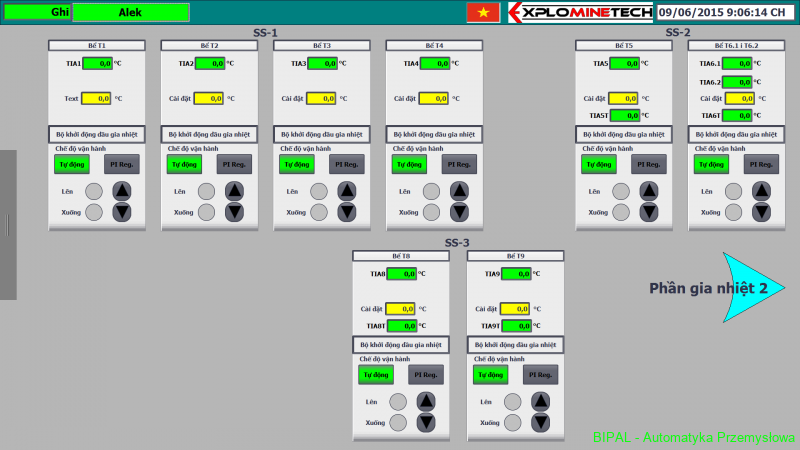

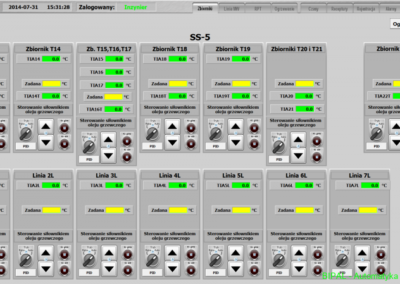

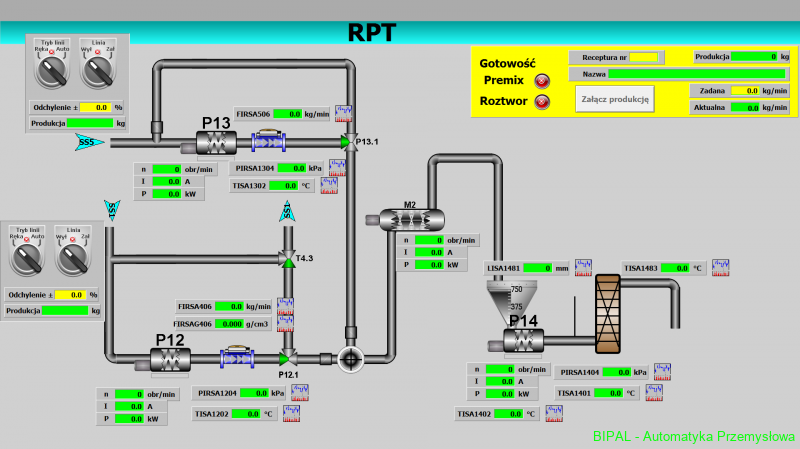

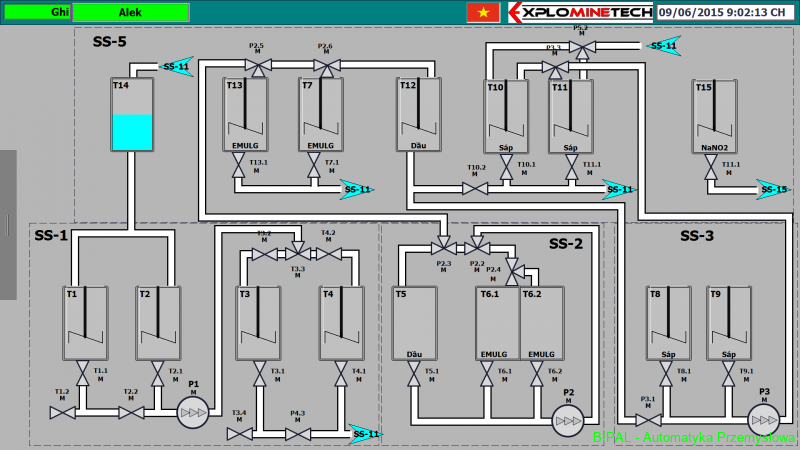

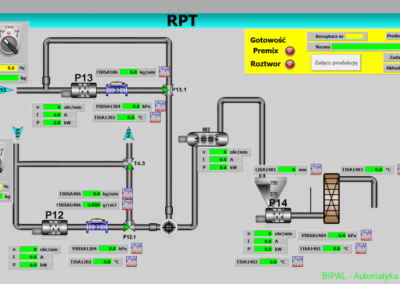

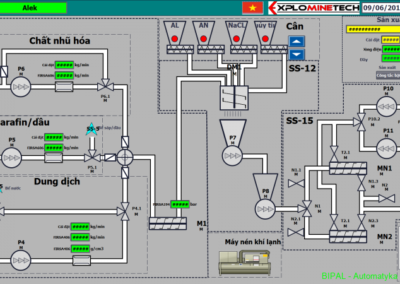

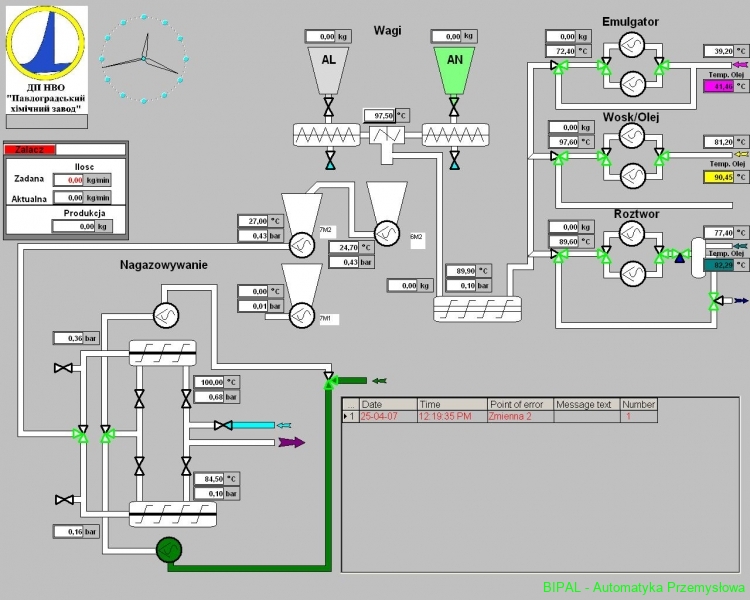

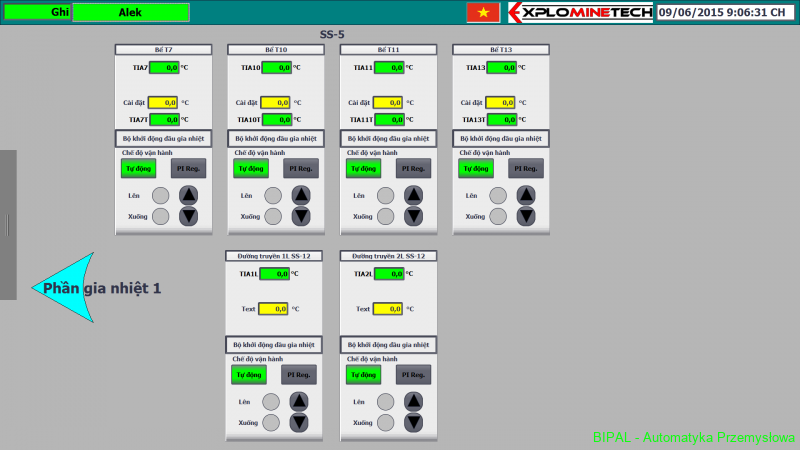

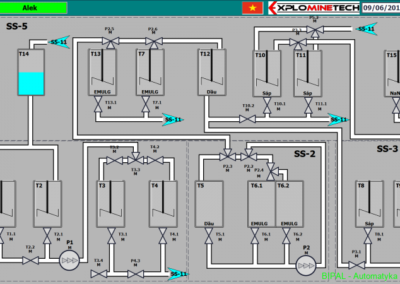

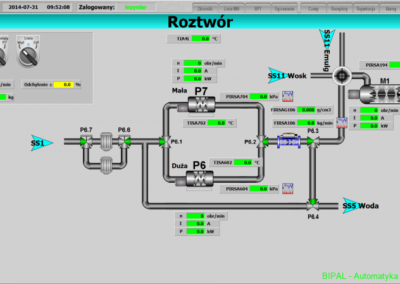

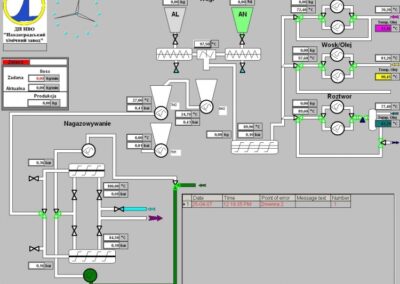

• Visualization and production supervision system based on Wonderware InTouch and Wonderware Historian software.
